We are specialists of Micro-Nano Bubble / Ultra- Fine Bubble Generator.

We have more than 50 years experiences in this field. Please feel free to contact us.

 Uniformed super tiny bubbles are generated continuously and stably with high density by this hybrid system. Bubbles generated by this system are not going up but keep staying in the water such a long time. Consequently, micro‐nanobubble  water with high density keep long.

We have wide range of products such as laboratory use device, compact and large model.

We also welcome to receive a order of special specification product such as heat-resisting, specializing for high viscosity liquid, made of fluorine, built-in unit and so on.    OEM supply is also available.

①LE3FS  Labo model

 This model is specialized for organic solvent, strongly acidic solution and strong alkaline solution. This model also has good corrosive gases such as O3 and chlorine resistance as its main wetted parts is PTFE.

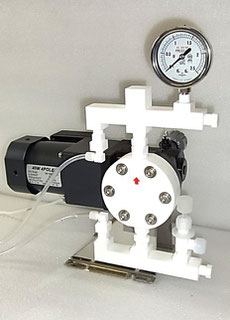

Micronanobubble genrator LE3FS
Micronanobubble genrator LE3FS

Price                : Ask

Dimenstions:H380×W360 ×D210mm

Weight        :7㎏

Voltage          :AC100-110V

Power            :40W

Frequency    :50/60Hz

Flow scope   :120-150㎖/min.

Fluid temperature:≦70℃

Fluid viscosity:50mPaS

Apply the media of: acid,alkali,organic solvents,oils.

Wetted parts materials: PEFE, ceramic, silicon tube、 stainless pressure gage

Note: Pressure gauge can be replaced to blind plug of PTFE and tubes can be changed to PTFE tubes.

Click  above to watch a clip to see how to adjust and operate.


②LE5S  Labo model

You can save expensive sample and doing experiments effectively.

This model has corrosion resistances such as Oil ,Organic solvent, Acid and
Alkali. Please ask details.

ultra finebubble generator LE5S
Micronanobubble generator LE5S

Price                : Ask

Dimenstions:H190×W300 ×D220mm

Weight        :4.4㎏

Voltage          :AC100-110V

Power          :1.3A

Frequency      :50/60Hz

Flow scope    :200-300㎖/min.

Fluid temperature:≦80℃

Fluid viscosity:50mPaS

Apply the media of: cid,alkali,organic solvents,oils.

Wetted parts materials: Stainless, ceramic, silicon tube

Click  above to watch a clip to see how to adjust and operate.


③FU11  Handy model

This model can generate high density nanobubble water stably and used in many fields such as agriculture , nursery, cleaning and so on. Please ask price and count data if you are interested in.

ultra finebubble generator FU11
Micronanobubble generator FU11

Price                : Ask

Dimenstions:H500×W350 ×D500㎜

Weight        :13.5㎏

Voltage          :AC100-110V/AC200V

Power          :750W

Frequency      :50/60Hz

Flow scope    :11/20L/min.

Fluid temperature:≦40℃

Apply the fluid of: water, emulsion

Click  above to watch a clip to see how to adjust and operate.


④LEA15S  Middle size    Can be recommended for food insdustry.

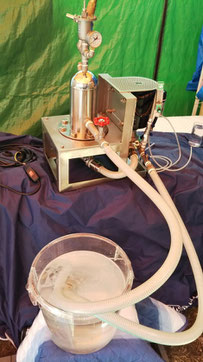

ultra finebubble generator LEA15S
Micronanobubble generatorLEA15S

Price                : Ask

Dimenstions:H710×W500 ×D490㎜

Weight        :36㎏

Voltage          :AC100V

Power          :650W

Frequency      :50/60Hz

Flow scope    :15L/min.

Fluid temperature:≦40℃

Apply the fluid of: water, emulsion

Click  above to watch a clip to see how to adjust and operate.


⑤LEX50 Middle model  Generate high density nanobubble water stably.

ultra finebubble generator LEX50
Micronanobubble generatorLEX50

Price                : Ask

Dimenstions:H800×W830 ×D460 ㎜ Weight        :65㎏

Voltage          :3Phase 200V

Power          :1100W

Frequency      : 50/60Hz

Flow scope    :40-60L/min.

Fluid temperature:≦40℃

Apply the fluid of: water, emulsion

Click  above to watch a clip to see how to adjust and operate.


⑥LEX200 Large model   Generate high density nanobubble water stably.

ultra finebubble generator LEX200
Micronanobubble generatorLEX200

Price                : Ask

Dimenstions:H1190×W927 ×D623 Weight        :220㎏

Voltage          :3Phase 200V

Power          :5500W

Frequency      : 50/60Hz

Flow scope    :80-120L/min.

Fluid temperature:≦40℃

Apply the fluid of: water, emulsion

Click  above to watch a clip to see how to adjust and operate.



Definition of super tiny bubbles

Difiniton of microbubble , nanobubble and finbubble
Behaviour of microbubble

Count data of bubbles



MICROBUBBLE COUNT

Application

PET BATH MICROBUBBLE
